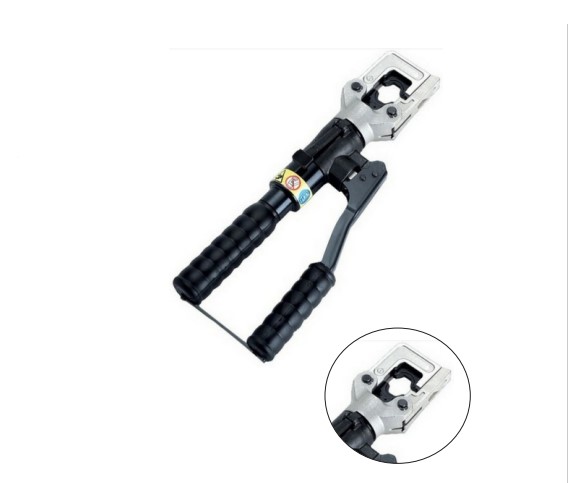

UST-500MCH Manual Hydraulic Crimp Tool

Specification :
• Output force: 6 tons
• Developes a crimping force of 6 tons for installing electrical
connectors on copper cables up to 500 MCM.
• Spring loaded handles allow the operator to advance the dies
with one hand, leaving the other free to position the connector.
• Tool head rotates 180°
• The built-in safety valve will by-pass the oil supply when the
maximum pressure is reached, and a pressure releasing system
can easily be operated at any stage of the compression.
• Bent fiberglass handle provides 60KV Min. Voltage Resistance, a solid grip, good leverage & durability.
• Complete crimps are assured with an over-center cam mechanism
• Tool can easily be checked visually for proper adjustment & can be
adjusted with an allen wrench.
• Dies are sold seperately.
• Weight: 5.9 Lbs

Note: For Quality Reason, we have the right to change the colour or design of the tools without any prior notice.
