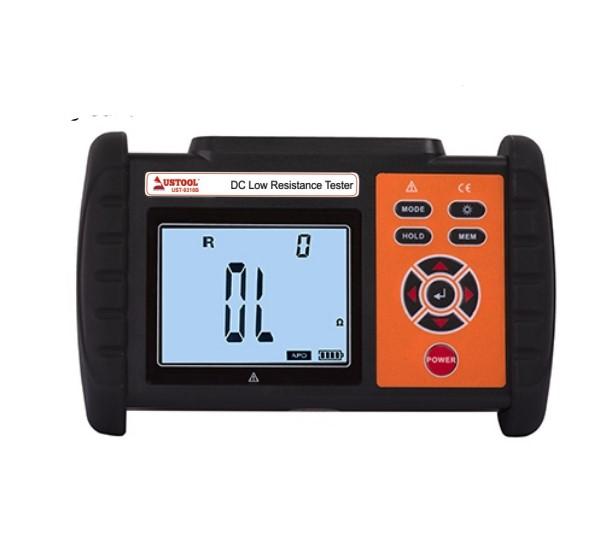

Functions:
It is mainly used to measure the wire resistance of cable, switch, connector, relay contact resistance,
coil, motor, transformer winding resistance, metal riveting resistance, connection resistance test
between metal components, low value resistance test, resistance test of connecting conductor
between ground poles, contact resistance test etc.
Measurement range | Accuracy | Resolution |
---|---|---|
0.001mΩ~10.000mΩ 0.001mΩ | Within 18 ℃ ~28 ℃, below 70%rh: ± 0.1%FS ± 20dgt |
0.001mΩ |
10.01mΩ~100.00mΩ | 0.01mΩ | |
0.1001Ω~1.0000Ω | 0.0001Ω | |
1.001Ω~10.000Ω | 0.001Ω | |
10.01Ω~100.00Ω | 0.01Ω | |
0.1001KΩ~1.0000KΩ | 0.0001KΩ | |
1.001KΩ~10.000KΩ | 0.001KΩ | |
10.01KΩ~100.00KΩ | 0.01KΩ | |
100.1KΩ 300.0KΩ | 0.1KΩ |
Technical Specification:
Open-circuit voltage | ≤ 4.2V |
Power: | Measured power: ≤ 8W |
Power Supply | DC 3.7V 2000mAh High Capacity lithium battery |
Backlight | Controlled grey and white screen backlight for dim places |
Display Mode | LCD display, gray and white screen backlight |
LCD Size | Length and width: 71 mm × 52mm |
Instrument Size | Length and height: 187 mm × 191 mm × 51mm |
Measurement time | About 2 Times/Second |
USB Interface | With a Micro USB Interface |
Communication Line | 1 micro USB Communication line |
Data Storage | 500 Group, “MEM” storage indication, display “FULL” symbol means the storage is full |
Data Access | Data access function: “MR” symbol display |
Overflow display | Overrange overflow function: “OL” Symbol Display |
Automatic Shutdown | “APO” indication, automatic shutdown, 15 minutes after startup |
Power consumption | Standby: about 100mA (backlight off) |
Power-on and open backlight: about 105mA | |
Measurement: 2A Max | |
Working temperature and humidity | 18 ℃ ~28 ℃; under 70%rh |
Storage temperature and humidity |
-15 ℃ ~50 ℃; below 70%rh |
Overload protection | AC 220V/0.0001 seconds between C1-C2 P1-P2 ports, after overload protection, need to restart the instrument to conduct normal test |
Insulation resistance | Above 10MΩ (500V between circuit and housing) |
Pressure resistance | Between the AC 3700V/rms(circuit and the housing) |
