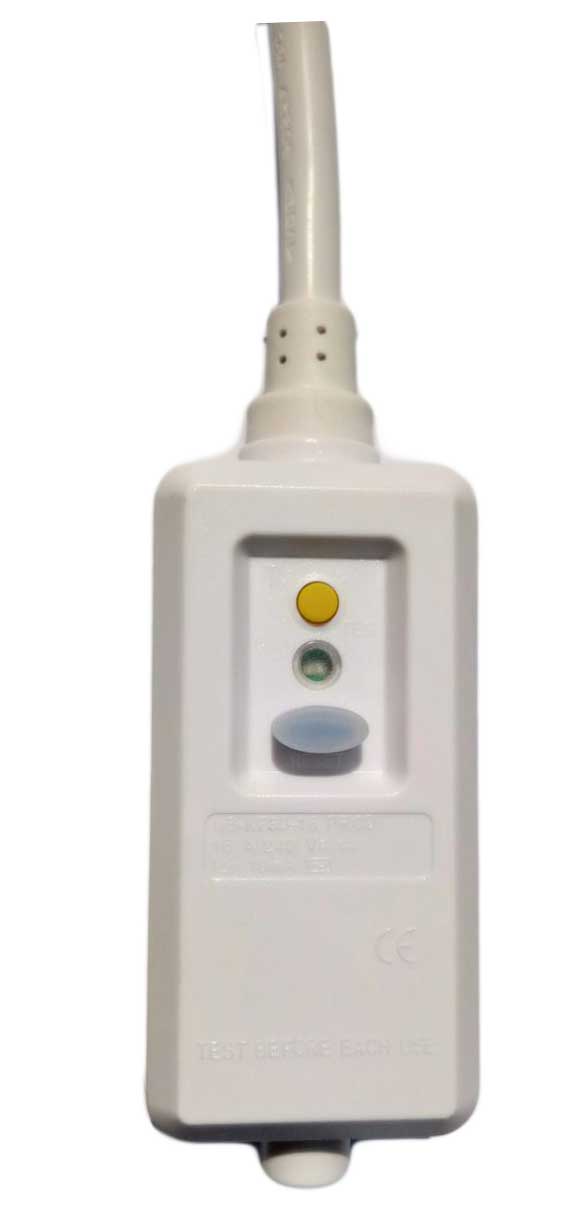

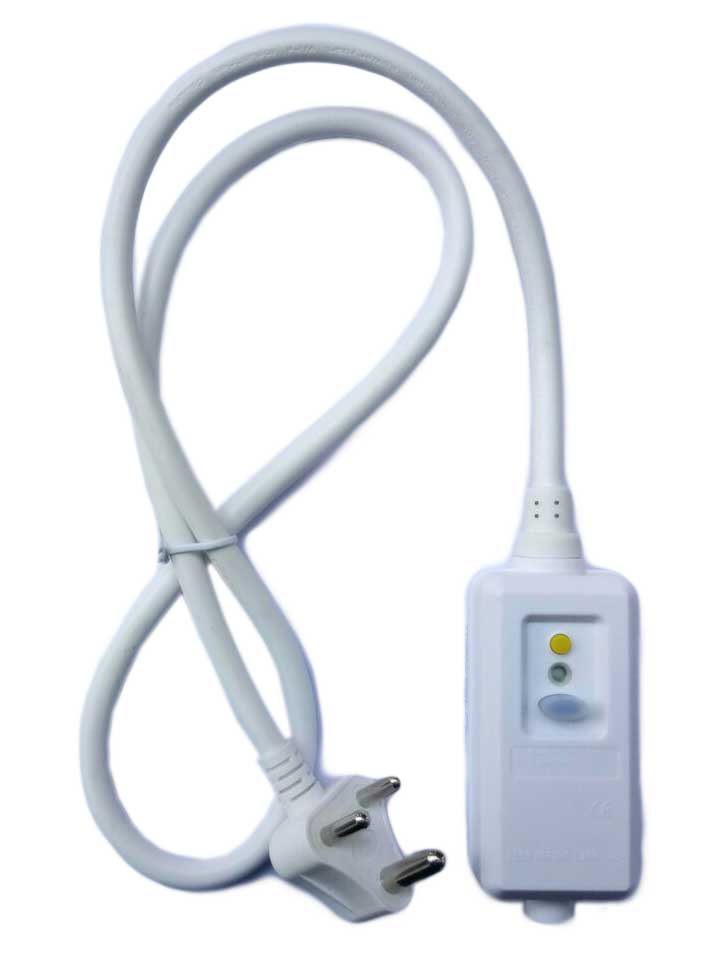

UST10-3P, Ground Fault Circuit Interrupter (GFCI)

Features :
• Ground Fault Circuit Interrupter (GFCI), is a compact electrical
safety device used to reduce the risk of electric shock
• It is used protect the personnel from dangerous electric shocks
while working with portable electrical appliances like Drilling
M/c, Electric Screwdriver, Hand Lamp, Soldering Irons, Portable
grinder etc. connected 40A pluggable sockets
• A GFCI monitors the amount of current flowing from Phase to
Neutral. If there is any imbalance, it trips the circuit.
Specifications :
Rated voltage : 220AC
Rated current : 16A
Leakage : 10mA
Tripping time : ≤0.1s
Endurance Test : 20000 times
Withstand : 2000V
Limited Current : 250A
Wire Length : 8cm
Quality Grade : Superior
Color : White
Brand : US TOOL
Part Number : UST10-3P
