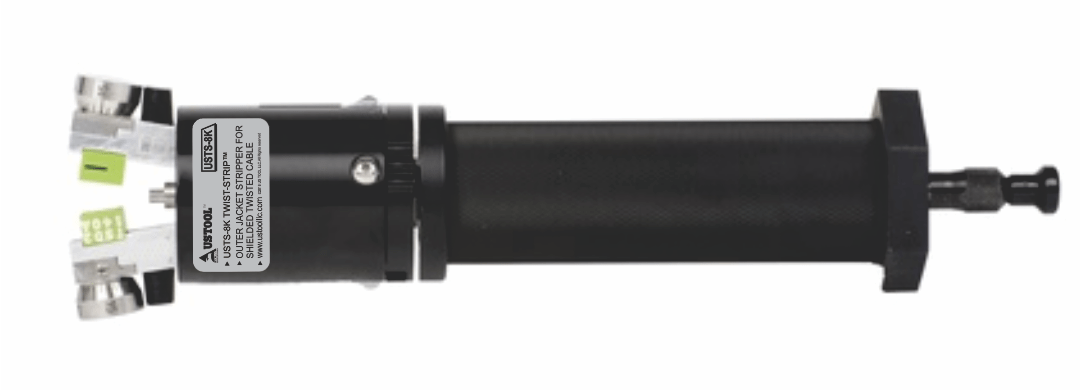

USTS-8K Twist-Strip Outer Jacket Stripper for Shielded Twisted Cable

Description:

USTS-8K has adjustable blades that allow the tool to accommodate variances in the cable. Varying jacket thickness and cable diameter are two examples of
common differences you may see in different lots of the same cable. Simple adjustments allow the user to set the cutting blades for a deeper or shallower score of the cable jacket.

SKU: USTS-8K Category:

PRECISE:

A cable track precisely machined into each die set creates a controlled rotation of the dies/blades as the cable is moved along the cable. A simple 90° bend of the cable results in the jacket halves separating for removal, reducing the amount of
force needed to remove the jacket.

CONSISTENT:

The repeatable function of the tool reduces operator error and is up to 3 to 5 times faster than conventional methods.

FEATURES:
• Rugged lightweight construction
• Adjustable blade depth settings
• Micrometer style blade adjustment knobs
• Removable and replaceable die sets
• Die Sets have a contoured cable track
• Adjustable cable strip length
• Locking tool arms
• Locking head
• Free rotating core
• Positive die closure

Specifications:

Part Number USTS-8K
Tool Weight 0.81lbs
Die Arm Lever Force 4.4lbs
Die Arm Lever Length 1 inch
Tool Dimensions 1.75 inches wide, 9.75 inches tall
Cable Max OD < 0.187 inches / 4.75 mm
Cable Min OD > 0.0625 inches / 1.59 mm
