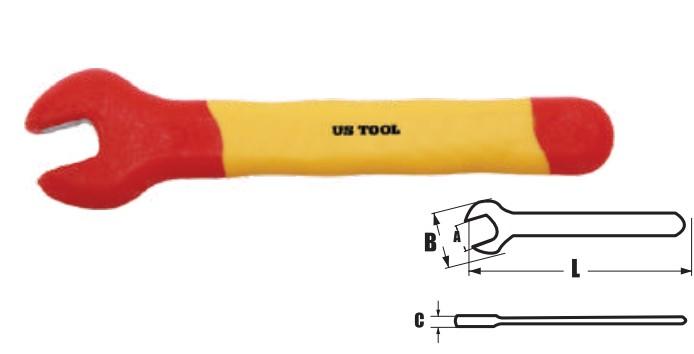

VDE 1000V Insulated Single Open End Wrench

Insulated 1000V
Ergonomic handle
Jaw 15° angled.
Chrome vanadium steel, forged, oil-hardened.

Category:

Specifications:

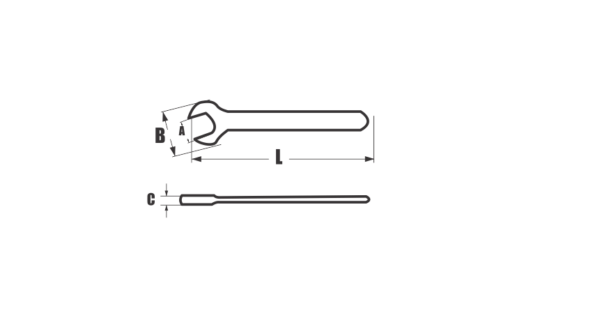

Model No. Material (A)Width across flats mm (B)Head Thickness max.mm (C)Head Thickness max.mm L OAL ±2mm Individual Packing
UST-V406 50BV30 6 23 28.0 90 Blister Card
UST-V407 7 25 28.0 90
UST-V408 8 27 28.0 100
UST-V409 9 29 28.0 100
UST-V410 10 31 28.0 110
UST-V411 11 34 28.0 110
UST-V412 12 36 28.0 130
UST-V413 13 39 28.0 135
UST-V414 14 40 28.0 145
UST-V415 15 42 30.0 150
UST-V416 16 43  30.0 160
UST-V417 17 47  30.0 160
UST-V418 18 50  30.0 175
UST-V419 19 53  30.0 175
UST-V421 21 55  30.0 195
UST-V422 22 58  30.0 195
UST-V424 24 62  30.0 225
UST-V427 27 69  30.0 250
UST-V430 30 75  30.0 290
UST-V432 32 79  30.0 310
